line symmetry

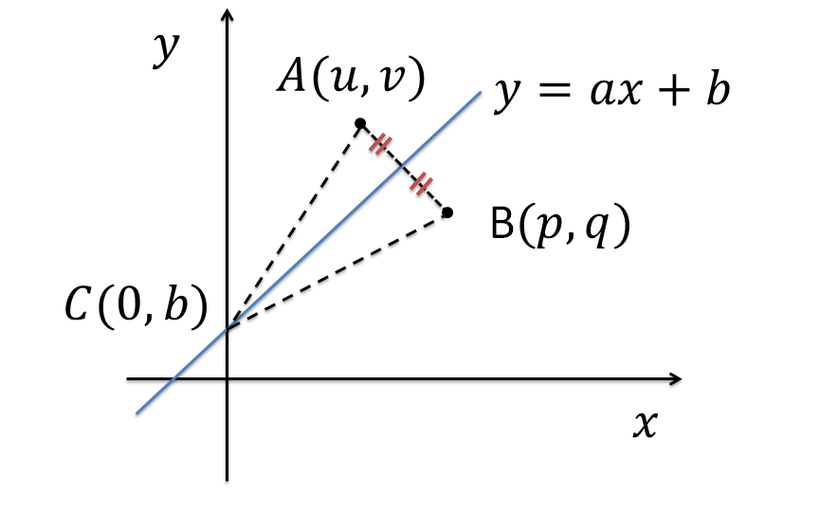

given the point A(u,v) and the line y=ax+b,

find the point B(p,q) which is symmetrical with respect to A.





the middle point between A and B is

((u+p)/2, (v+q)/2), and the point satisfies the line y=ax+b, so we get



(v+q)/2 = a*(u+p)/2 + b ⇔ ap - q = v - au - 2b   ・・・(Σ)



|AC| = |BC| then we get



root(u^2+(v-b)^2) = root(p^2+(q-b)^2)  ・・・(Λ)



solving (Σ) and (Λ) for p and q



(subject to a^2+1!=0,)  we get



p =

     -a^2 u - 2ab + 2av + u

    --------------------------------

                a^2+1



q =

      a^2 v + 2au + 2b - v

     ---------------------------

               a^2+1



question

when y=3x+2, A(1,7), find the point B(p,q).



p =

    -2×3×2+1-3^2×1+2×3×7

    --------------------------------  = 11/5

                3^2+1



q =

     2×2+2×3×1-7+3^2×7

     --------------------------- = 33/5

               3^2+1





the formulas of p and q are complex, so

you do not have to remember them.



all you have to do is to find the two equations,

v+7        u+1

---- = 3 *------ + 2  ⇔ v = 3u

  2            2



and



u^2 +(v-2)^2 = 26, and you solve them.

other solutions

finding the line through B(p,q) that is vertical to the line y=ax+b,

that is q = -1/a (p-u) + b (a=!0).



solving this and (Σ) above allows you to find the point (p,q).



or

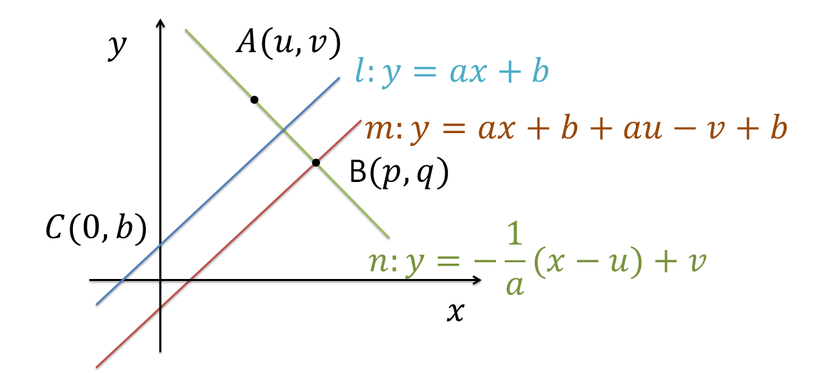

if you can find the two lines m and n, you can get the answer by solving them.
